| Tempat asal: | ShenZhen Cina |
|---|---|
| Nama merek: | VEGASHINE / OEM |
| Nomor model: | IPC-P14-6422VHGP-7TH-I7 |
| Kuantitas min Order: | 1 unit |
| Kemasan rincian: | Karton |
| Waktu pengiriman: | 3 sampai 10 hari kerja |
| Syarat-syarat pembayaran: | T/T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 1000 unit per bulan |
| CPU: | Intel® Core™ Kaby Lake-U i7-7500U | RAM: | Dukungan 2 * DDR4 SODIMM 260 Soket |
|---|---|---|---|
| Menampilkan: | H-D-M-I+VGA | Port Serial: | 6 *COM |
| USB: | 6 * USB | Ethernet: | 2* Gigabit LAN |
| GPIO: | 1 * GPIO | Dimensi: | 236*176*85mm |
| Kekuasaan: | Catu daya DC12V | ||
| Menyoroti: | Komputer Mini Industri I7-7500U,Komputer Mini Industri 2Lan,PC Mini 2 Lan 6COM |
||

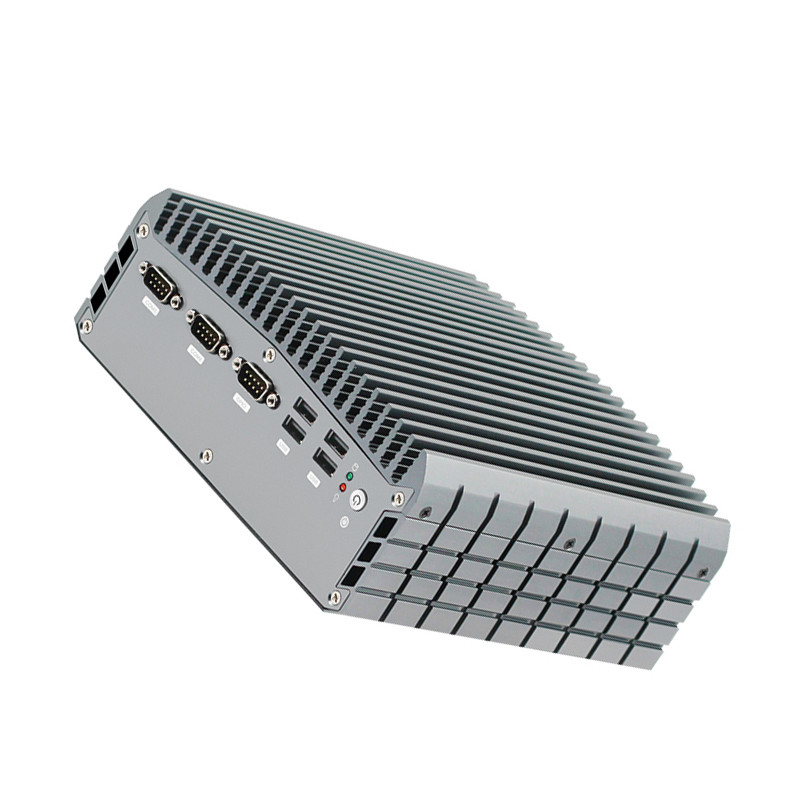

Intel®7thGen i7-7500U Mini pc industri tanpa kipas dual gigabit LAN 6COM GPIO Ports
Fitur utama
Intel® Core™ Kaby Lake-U i7-7500U Prosesor dual core 4 thread 2.7~3.5Ghz
2 * Soket DDR4 SODIMM 260
Dukungan VGA + HDMI Tampilan sinkron atau asinkron
1 * VGA
1 *HDMI
4*USB2.0, 2*USB3.0
2*Gigabit LAN
6*COM
1*GPIO
1 * SATA3.0
1 * Mini-SATA
1 * Antarmuka Tanah
Catu daya DC12V
Ukuran: 236*185*85mm
Spesifikasi
| Prosesor | Intel® Core™ Kaby Lake-U i7-7500U Prosesor dual core 4 thread 2.7~3.5Ghz |
| Chipset | Chipset serial Intel ® Kaby Lake-U |
| Soket Ram | 2 * Soket DDR4 SODIMM 260 |
| Jaringan | Onboard 2* Gigabit LAN |
| Audio | HDA ALC662 bawaan |
| Penyimpanan |
1 * SATA3.0 1 * Mini-SATA |

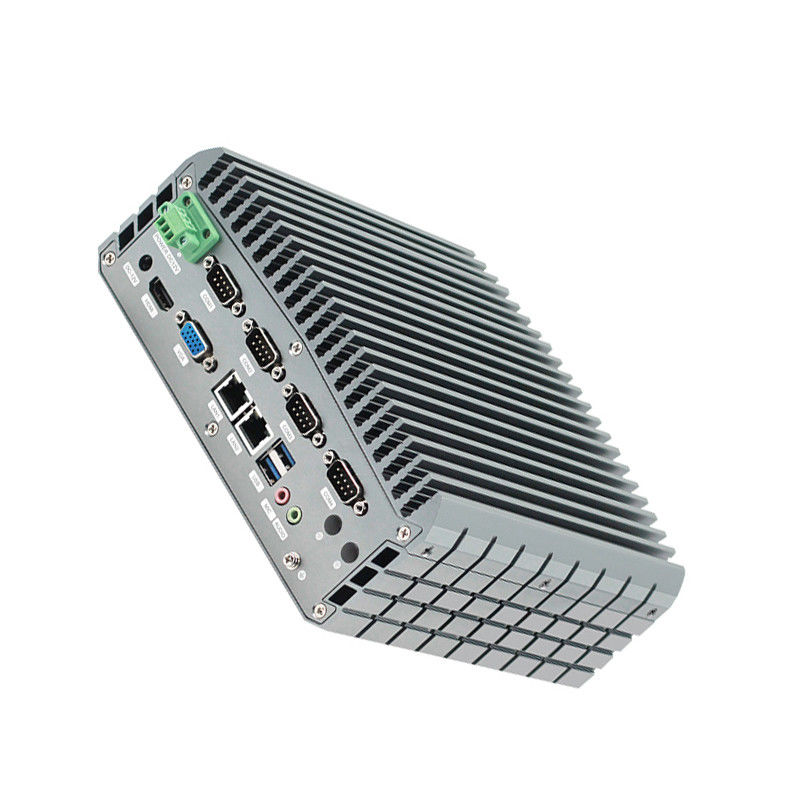

| Antarmuka panel belakang |
2*LAN 1 *HDMI 1 * VGA 4*COM 1 *DC 1 * MIC-IN 1 * GARIS KELUAR 2 * USB3.0 2 * Antarmuka Antena WIFI 1 * Antarmuka Tanah |
| Antarmuka panel depan |
2*COM 1*GPIO 4 * USB2.0 1 * saklar daya 1 * Indikator hard drive 1 * Indikator Daya |
| Casis | Perak |
| Ukuran | 236*185*85mm |
| Sistem operasi | Windows7/Windows 8/Windows8.1 /Windows10/linux |
| Tipe Daya | Catu daya DC12V |
| Suhu Operasional | -20℃ ~ +60℃ |
| suhu penyimpanan | -40℃ ~ +85℃ |
| Kelembaban kerja | Kelembaban relatif 0% ~ 90%, tanpa kondensasi |
| Kelembaban penyimpanan | Kelembaban relatif 0% ~ 90%, tanpa kondensasi |
