CPU: | Intel® 5 Mobile Broadwell-U I3 I5 I7 | RAM: | 2 * Soket DDR3 SODIMM 204 |
---|---|---|---|
Ethernet: | 1 * Gigabit LAN | Menampilkan: | VGA / HDMI |
Pelabuhan COM: | 1 * RS232 | NGFF_SSD: | 1 * Port NGFF_SSD |
Sumber Daya listrik: | DC12-19V, +/-5% catu daya | Dimensi: | 165*114,2 mm |
Menyoroti: | OPS mini pc mother board,mini pc mother board 19V,mini pc mother board I7-5500U |
Melihat:
Saat Anda bertanya, Anda dapat memilih Model berikut
OPS-PM05C-I3, Terintegrasi Generasi ke-5 Intel® Core™ i3-5010U prosesor dual core 4 thread 2.1GHz
OPS-PM05C-I5 , Prosesor Intel® Core™ i5-5200U Generasi ke-5 terintegrasi dual core 4 thread 2,2~2,7GHz
OPS-PM05C-I7, Terintegrasi Generasi ke-5 Intel® Core™ i7-5500U prosesor dual core 4 thread 2.4~3.0GHz

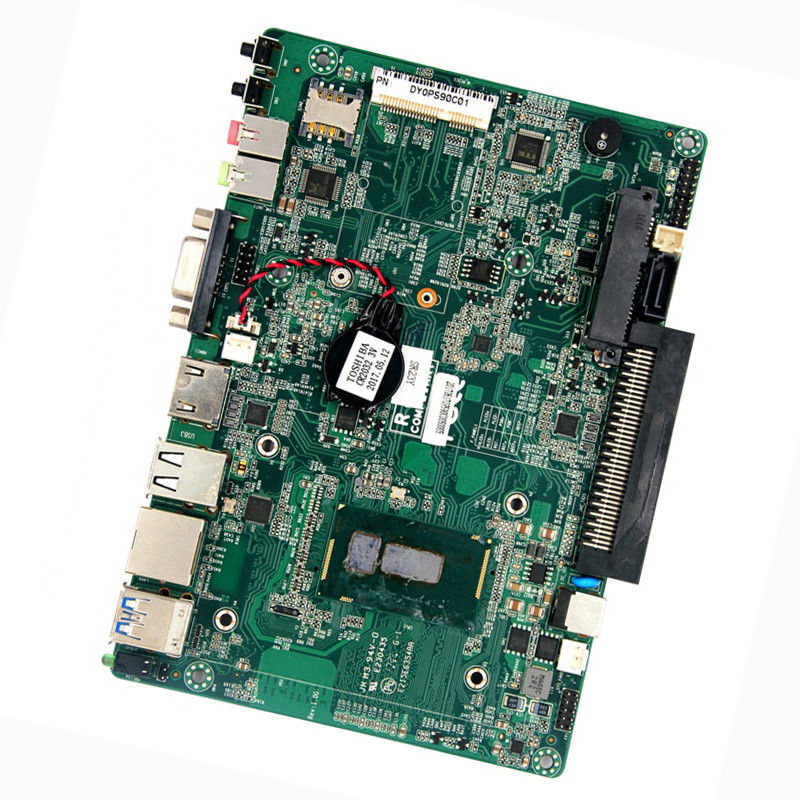

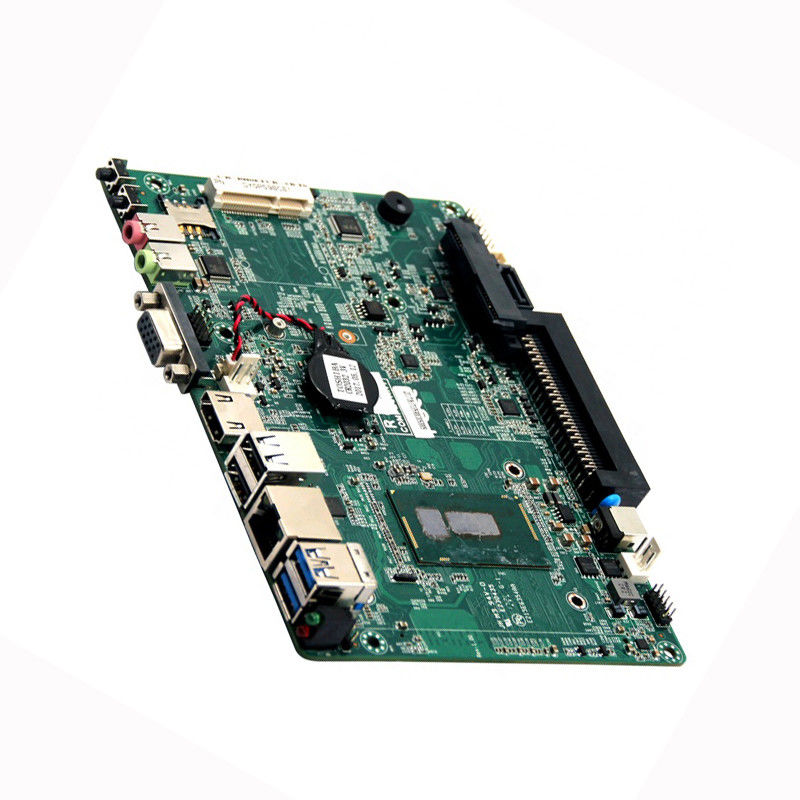

Broadwell-U i3-5010U i5-5200U i7-5500U OPS PC Mainboard RS-232 untuk Kelas Papan Tulis Elektronik DC12-19V
Fitur utama
Intel®5 terintegrasithSeluler Broadwell-U i3 i5 i7
2 * Soket DDR3 SODIMM 204
Onboard 1*Gigabit Ethernet Port
2*SATA3.0
1 * Soket MSATA Mini-PCIe
1*Gigabit LAN
1*VGA, 1*HDMI
1 *RS-232
4 * USB3.0
Mendukung Ekspansi OPS
Ukuran: 165 * 114,2 mm
Catu daya DC masukan tunggal, DC12-19V, +/-5%
Spesifikasi
Prosesor | CPU |
Model : OPS-PM05C-I3 , Prosesor Intel® Core™ i3-5010U Generasi ke-5 terintegrasi dual core 4 thread 2.1GHz
Model : OPS-PM05C-I5 , Prosesor Intel® Core™ i5-5200U Generasi ke-5 terintegrasi dual core 4 thread 2.2~2.7GHz
Model : OPS-PM05C-I7 , Prosesor Intel® Core™ i7-5500U Generasi ke-5 terintegrasi dual core 4 thread 2.4~3.0GHz
|
paket CPU | BGA | |
Chipset | SOC seri Intel Broadwell-U | |
BIOS | BIOS EFI | |
Penyimpanan | arsitektur teknologi | Saluran ganda DDR3L 1066/1333/1600MHz |
stopkontak | 2 * Soket DDR3 SODIMM 204 | |
Video | Pengontrol grafis | Intel HD Graphics 4400(kartu grafis I3-5010U)Kartu grafis terkait dengan CPU |
VGA | VGA max mendukung resolusi 2048*1536 | |
HDMI | Dukungan Resolusi MAX (HDMI1.4)3200*2000@60HZ | |
Tampilan ganda | HDMI dan VGA Tampilan sinkron atau asinkron | |
Port Panel I/O | Pelabuhan |
1 * VGA 1 *HDMI 1*LAN 2 * USB3.0 2 * USB2.0 1 * MIC-OUT/LINE-OUT 1 * tombol sakelar 1 * indikator hard disk 1 * indikator daya 1 * Tombol Mulai Ulang |
Jaringan | pengontrol | 1 * Port Ethernet Gigabit RTL8111E-V, Port RJ45 |
Audio | pengontrol | Dekode audio Realtek HD ALC662 (saluran kiri dan kanan + mikrofon) |
Super I/O | pengontrol | IT8163E |
Pengontrol perangkat keras | Pengatur waktu pengawas | 0-255 Detik, menyediakan rutinitas pengawas |
Lebih dingin | Radiator kipas aluminium | |
Pelabuhan masukan/keluaran | USB |
2 * USB3.0 kompatibel dengan USB2.0 / 1.1, Dukungan maksimal +5V/1A 2 * USB2.0 |
Port seri | 1 *RS-232 | |
PS/2 | TIDAK | |
Bus Ekspansi | Mini-PCle | 1 * Soket Mini-PCIe, Mendukung perangkat PCIe dan USB |
Penyimpanan | SATA | 2 * Port SATAIII standar, Kecepatan transfer maksimum antarmuka 6Gb/dtk |
SATA_HDD | 1 * Antarmuka SATA_HDD, kecepatan transfer maksimum 6Gb/dtk | |
M-SATA | 1 * Soket MSATA Mini-PCIe, mendukung protokol SANDISK, kecepatan transfer maksimum 6gb/dtk | |
Sumber Daya listrik | Jenis kekuatan | Catu daya DC input tunggal, DC12-19V, + / - 5% |
Konsumsi daya | 35W | |
Lingkungan kerja | Suhu kerja | -20℃ ~ +60℃ |
Suhu penyimpanan | -40℃ ~ +85℃ | |
Kelembaban kerja | 0% ~ 90% Kelembaban relatif, tanpa kondensasi | |
Kelembaban penyimpanan | 0% ~ 90% Kelembaban relatif, tanpa kondensasi | |
Ukuran | Ukuran | 165 * 114,2 mm |
Bobot | 0,5KG |
