| Place of Origin: | China |
|---|---|
| Nama merek: | VEGASHINE / OEM |
| Model Number: | VGS-BF10206001-N150 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High quality aluminium sheet chassis | Dimension: | 440mm*255mm*45mm |
|---|---|---|---|
| Chassis color: | Black | CPU: | Intel® N150 quad core |
| Memory: | Support 1*SO-DIMM DDR5 4800MHz Max16GB | Gigabit LAN: | 6* Intel® I226V 2.5G LAN |

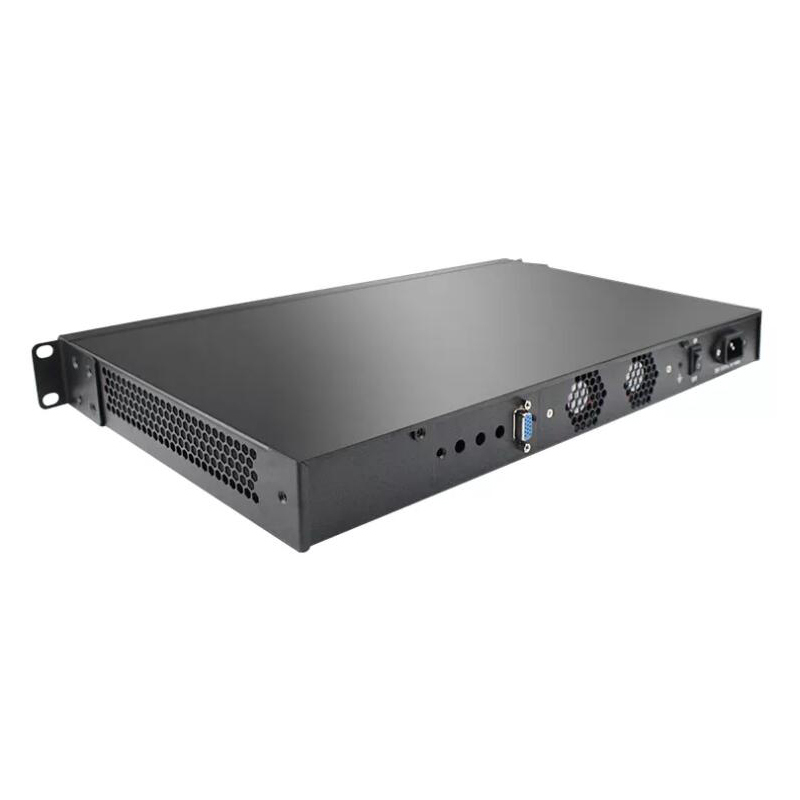

1U rackmount quad cores N150 6 I226V 2500M NIC firewall PC dukungan soft router pFsense
Fitur Utama
Spesifikasi
| Nomor model. | VGS-BF10206001-N150 | |
| Chassis | Warna | Hitam |

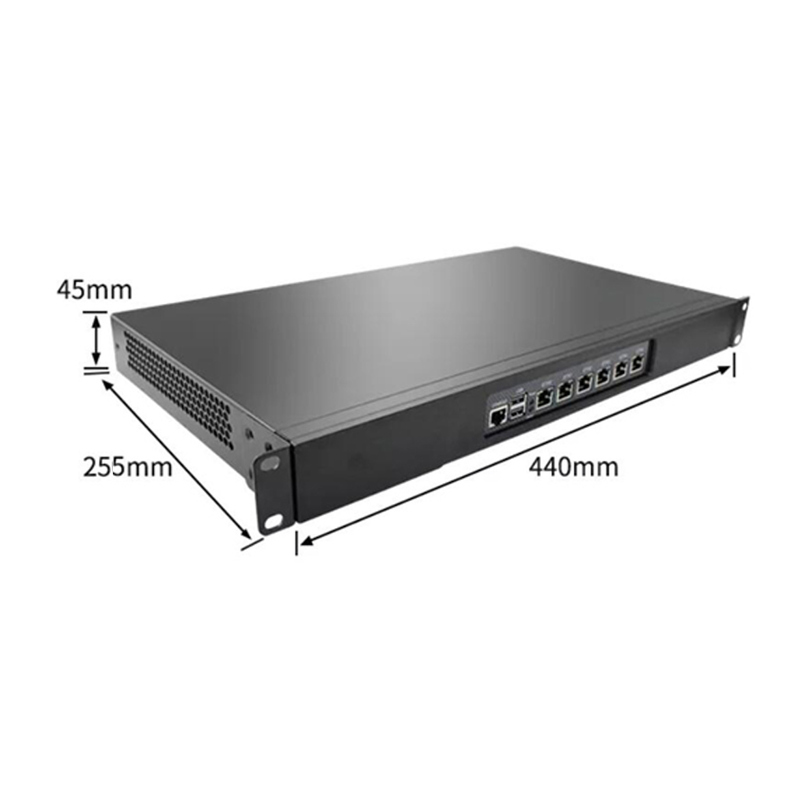

| Dimensi | 440mm*255mm*45mm | |
| Struktur | 1U rackmount Sasis standar | |
| Bahan | Sasis aluminium berkualitas tinggi | |
| Platform | Prosesor |
Intel® N-series Twin Lake N150 Quad core 4 thread prosesor terintegrasi Frekuensi Turbo Maksimal 3,6 GHz 6 MB Intel® Smart Cache Daya dasar prosesor 6W |
| Chipset | Twin Lake N150 | |
| Grafis |
Grafis Intel® Terintegrasi mendukung output tampilan 1*VGA |
|
| RAM | DDR5 | Dukungan 1*SO-DIMM DDR5 4800MHz Max16GB |
| Penyimpanan | HDD | 1*SATA3.0 antarmuka |
| SSD | 1*SSD MSATA | |
| Audio | Audio | N/A |
| Jaringan | Ethernet | Di dalam 6* Intel® I226V 2.5G LAN |
| Ekspansi | M.2 | 1*M.2 B Kunci mendukung modul 4G, 1*M.2 E Kunci, mendukung WIFI/bluetooth |
| I/O depan | Serial Port | 1* Port serial standar CISCO |
| USB | 2* USB3.2 | |
| LAN | Pelabuhan 6* RJ45 | |
| LED | 1* HDD LED, 1* Power LED | |
| Kembali I / O | Tampilan | 1* output tampilan VGA |
| Sumber Daya | 1* Power Interface | |
| Sumber Daya | Input | AC 110V ~ 240V |
| Jenis daya | Sumber daya ATX | |
| Keandalan | Operasi Temp. | 0°C ~ 50°C |
| Suhu penyimpanan. | -20°C~70°C | |
| Kelembaban Relatif | 5%-95%, tidak ada kondensasi | |
| Getaran | 0.5g rms/5-500HZ/acak/beroperasi | |
| Sistem Operasi | Mendukung Win 7/8/10/11, Linux, Ubuntu Pfsense dll. | |
